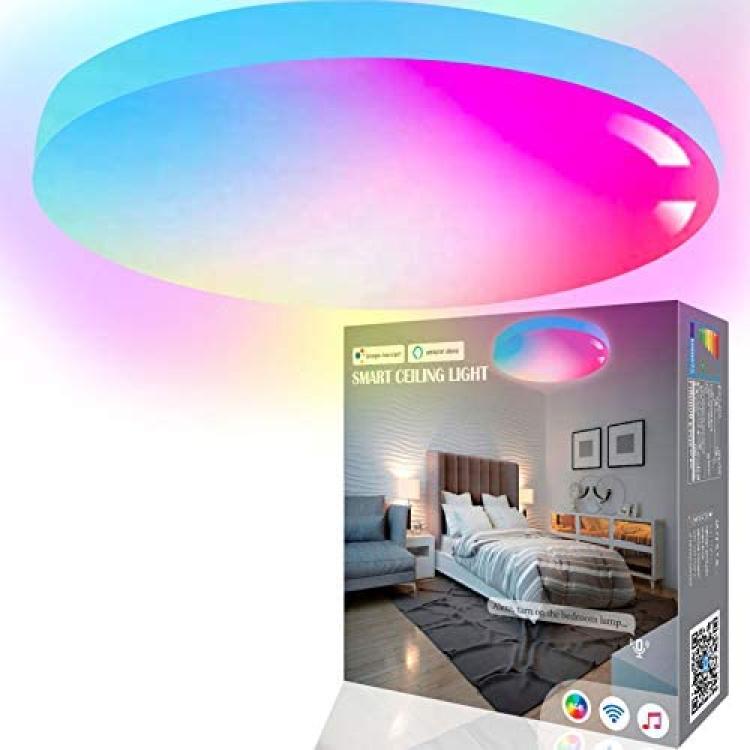

MikeWin Smart Ceiling Light LED Flush Mount WiFi 24W 16 Inch, Compatible with Alexa Google Home, 2400LM Sync to Music 2700-6500K RGBCW Low Profile Ambient Light Fixture for Bedroom Living Room

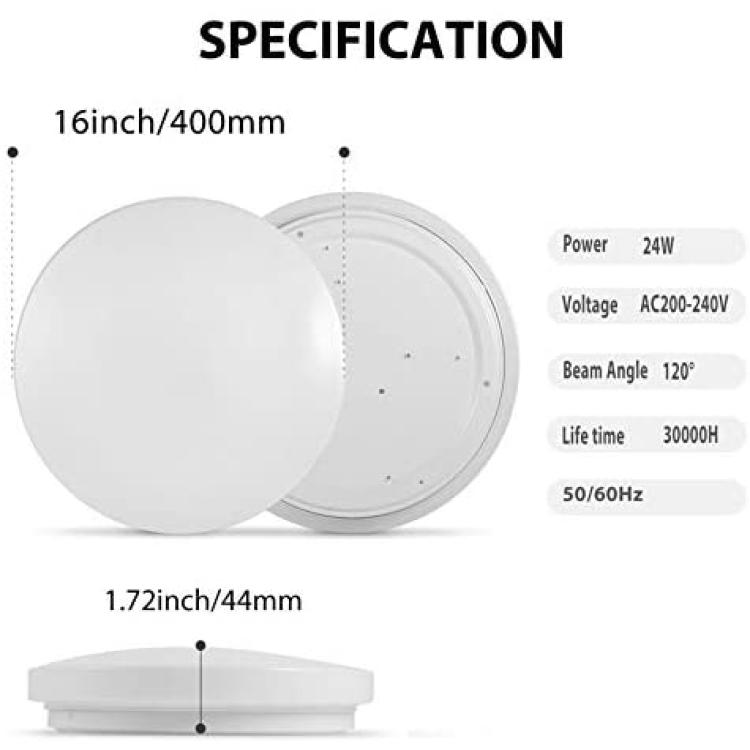

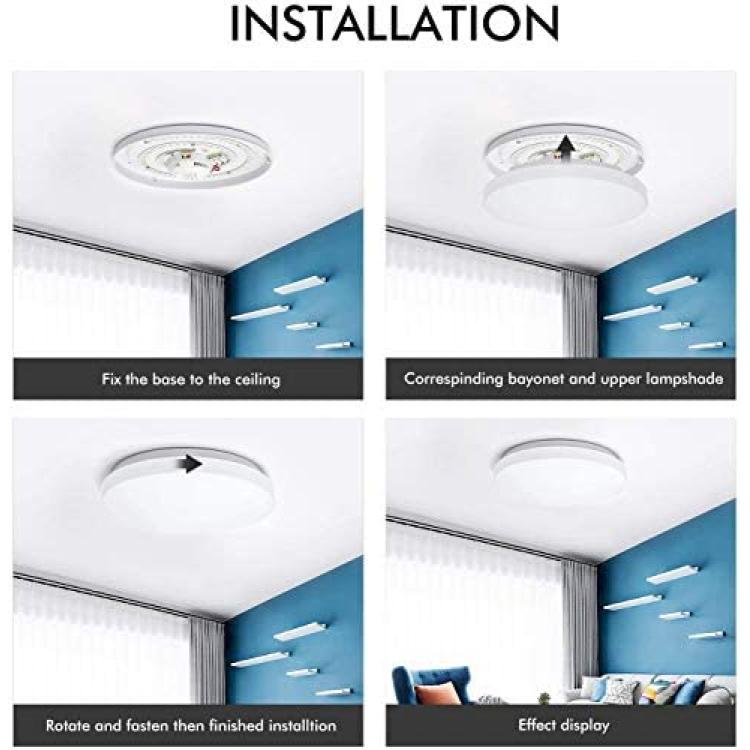

Input voltage: 100-240V / 50-60HzInput power: 24WMax Luminous Flus: 2400LMColor temperature: 2700K-6500KColor: RGB, Cool White, Warm WhiteNet Weight: 0.75kgGross Weight: 0.95kgDimension: 400mmApplicable scene: bedroom, living room, childrens roomRotate the cover anticlockwise to detach it from the lamp body .Fix the mounting cross bar to the junction box.The AC line comes out through the inner keyhole slots.Tighten the short mounting screws to ensure the lamp body is secured against the mounting t.AC Wire connections(L/N/E)Attach the cover to the lamp body, and rotate the cover clockwise to secure in place.White (N: Neutral Line) supply wire to Blue light fixture wireBlack (L: Live Line) supply wire to Red light fixture wireGreen (E: Earth Line) supply wire to Yellow light fixture wiresHigh voltage: LIVE lineLow voltage: NULL lineAlmost no voltage: Earth line
