DIY Plug in Hexagon LED Garage Light for Workshop Gym Detail Shop, Size Customizable Hexagonal Honeycomb Grid System (8 Hexagonal Grid System)

Product Information

Tubes :440*20mm 6w 47 piecesConnectors:120° 2-way white 17 piecesConnectors 120° Y connector white 22 piecesThe power cords 1-endsInstruction ManualCard buckleNylon cable tie

Voltage: AC80-240V (input)Complete Set Quantity: (126.2 x93.7 x 1.97 inches) + 11 HexPower: 276WLumen: 60720lm-66240lmColor rendering index: >90CCT: whiteMaterial: Aluminum + PC cover

These lights can be fixed directly to your ceiling using screws, nylon ties, and snaps, making them very easy to install.

The light set is DIY free to put together, you can install the shape you like (existing connectors only).This set of hexagonal LED lights requires only 1 power cord.You can prepare indoor wire kit and splice connector to hardwire it.If you don't know how to install it, please pay attention to the installation instructions, especially the wiring part, to install the fixture correctly.

Make sure the red wire is connected to your live wire. The blue wire is connected to your neutral wire. You must test to distinguish between your live and neutral wires, reversing them will burn out the entire fixture.

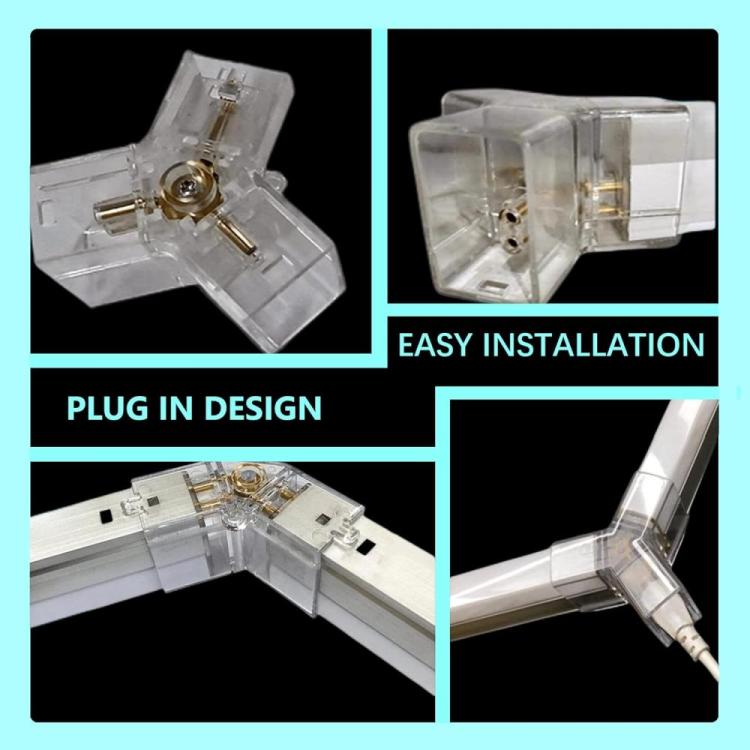

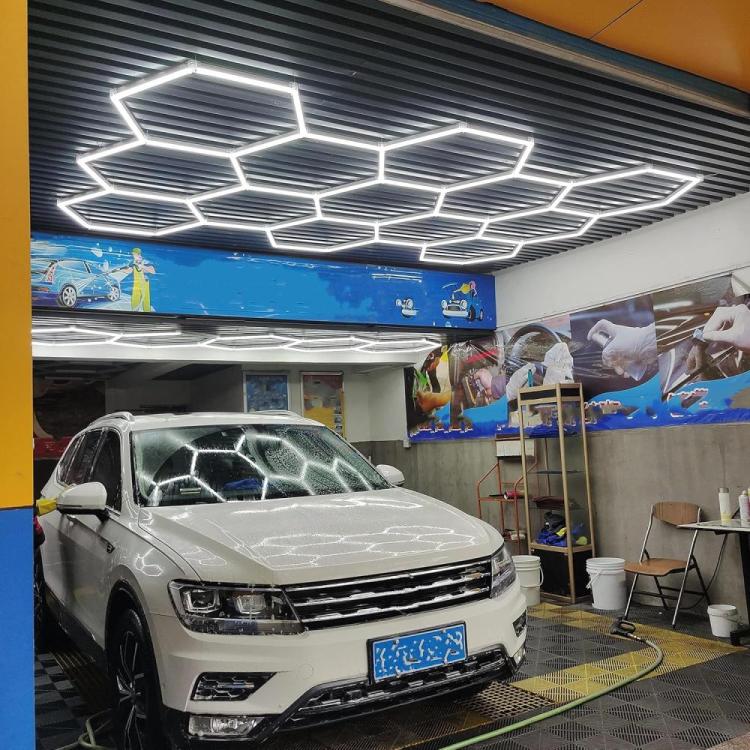

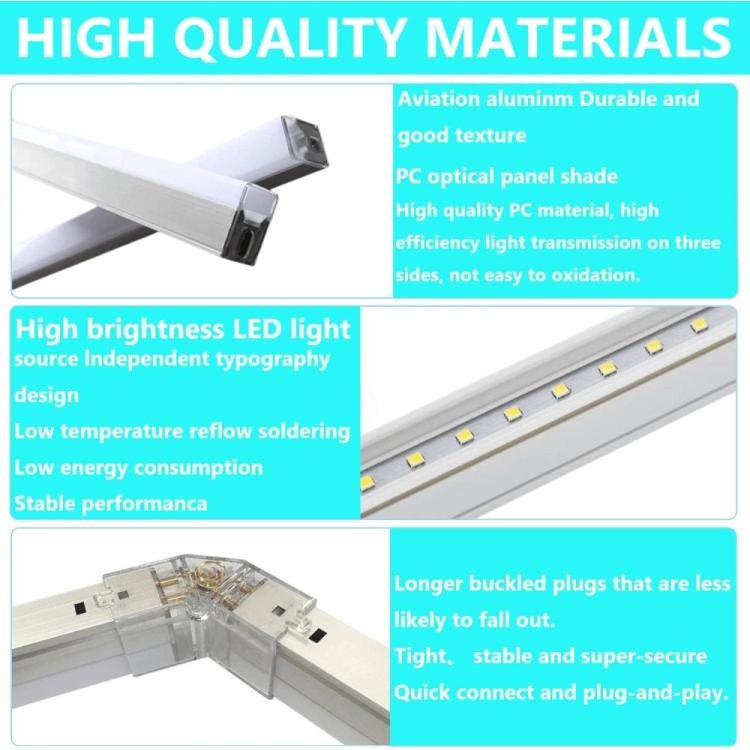

Hexagonal grid system complete set of LED lights includes 35 tubes and accessories, aluminum body + PC cover; only 210w, can illuminate large areas very brightly, 6500k ultra-white, CRI>85， illuminate the beauty of your car 。 SUPER COOL FREE COMBINATION - With 120° Y connector and 120° 2-way connector, 35 tube lights can be freely combined to create the perfect cool light shape. Each connector features a 3-pin design, which means faster installation and safe power delivery. Low energy consumption high performance durable and comfortable car detail light - super high brightness, AC85-260V, color temperature 6500K, 110-120lm/w, no flicker, no glare, lifespan over 60,000 hours. You'll enjoy these LED lights for many nights to come。 Widely used in the lighting of garages, car wash shops, repair shops, exhibition halls, shopping malls and other places to enhance the style and attract people. Note - This product comes with a standard power cord that plugs directly into the connector. Customers need to prepare the wire and US plug for connection to the power switch according to the actual length of the installation location; this product is for single set use, if you need more than one set combined connection or you want to design a large area project, please contact us before placing an order.

Style:

8 hexagonal grid system 11 Hexagonal grid system
