PENGLIN 5PCS M20 Electrical Junction Box,IP67 Waterproof Outdoor Cable Connector for Plant Light,Industrial Device
About this product
*Rated Voltage:300V; Rated Current:15A; Contact Resistance: less than 5mΩ; Cable Gauge: 16AWG(less than 1.5mm²).

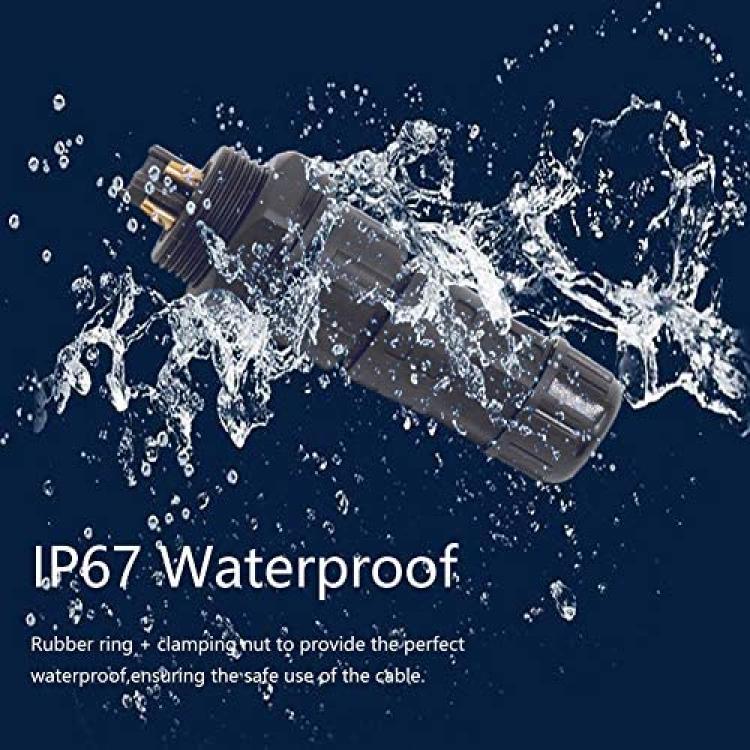

*IP67 INGRESS PROTECTION: It is an ideal choice for harsh industrial or outdoor environments, Especially suitable for the wiring of Christmas trees, plant lights and cnc controller.

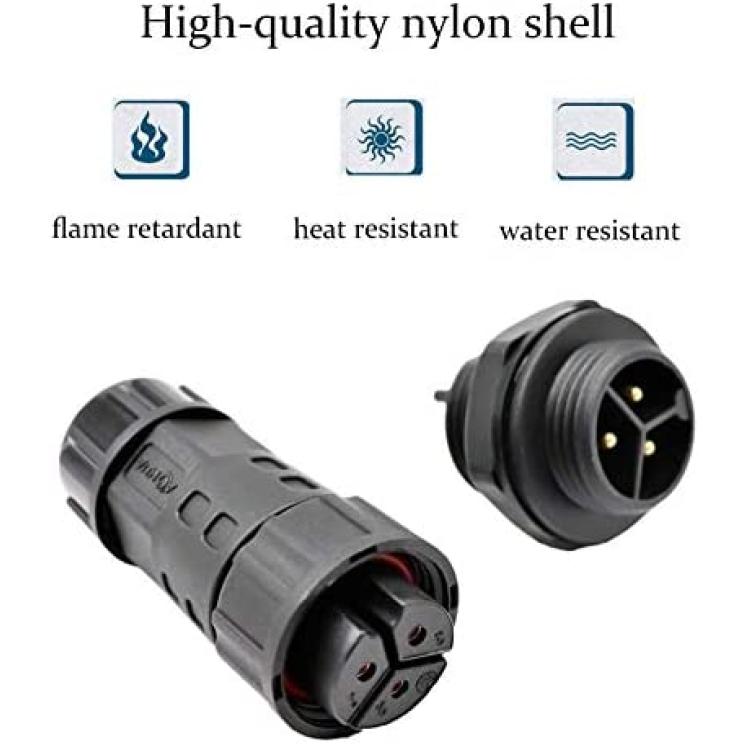

*DURABLE: The shell is made of PA66 materials, anti-corrosive, flame retardant, anti-oxidation, high temperature resistance, will not crack or fade in the sun, and have a long service life.

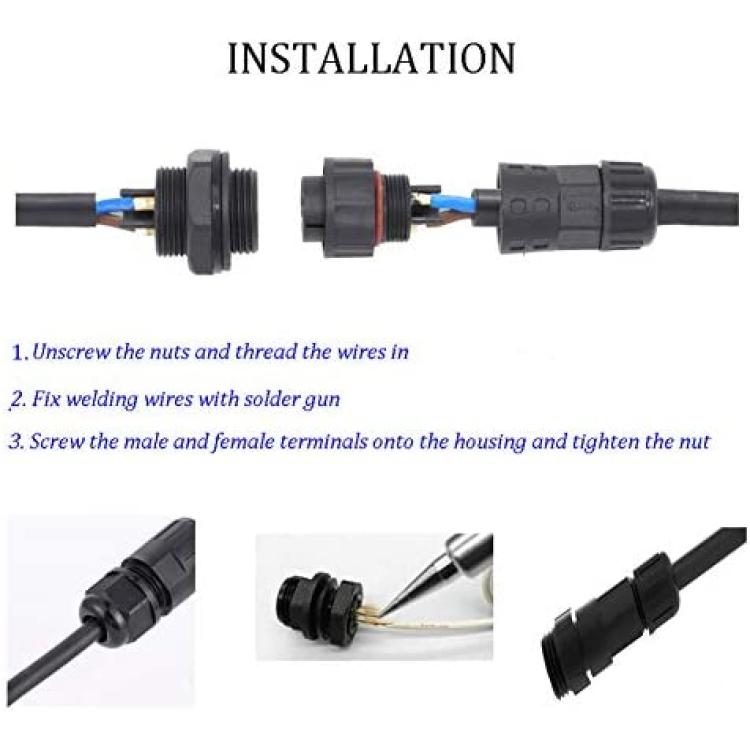

*Quick-Disconnect: Threaded connection, simple operation, easy installation. In the event of a fault, there is no need to pinch off, just unscrew the ends of the connector.
*QUALITY ASSURANCE: Professional waterproof connector manufacturer, with UL certification, IP67 certification, CE certification, RoHS certification. The product undergoes rigorous inspection before leaving the factory.
Description
Our daily life and work are inseparable from the existence of aviation plugs. Aviation plugs play a vital role in our life and production processes. They make the design and production process easier, more flexible, and reduce the cost of production and maintenance.

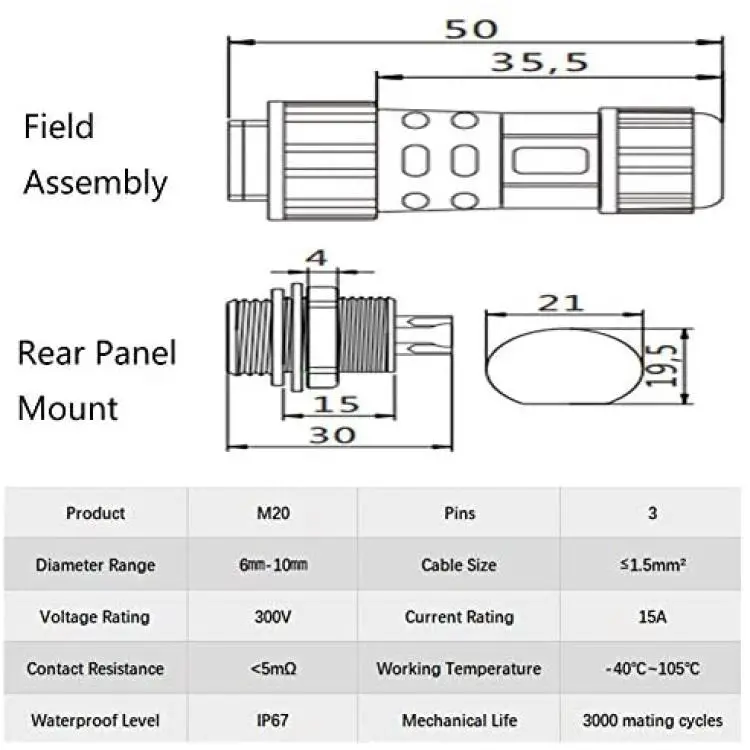

Specifications:
Color: Black

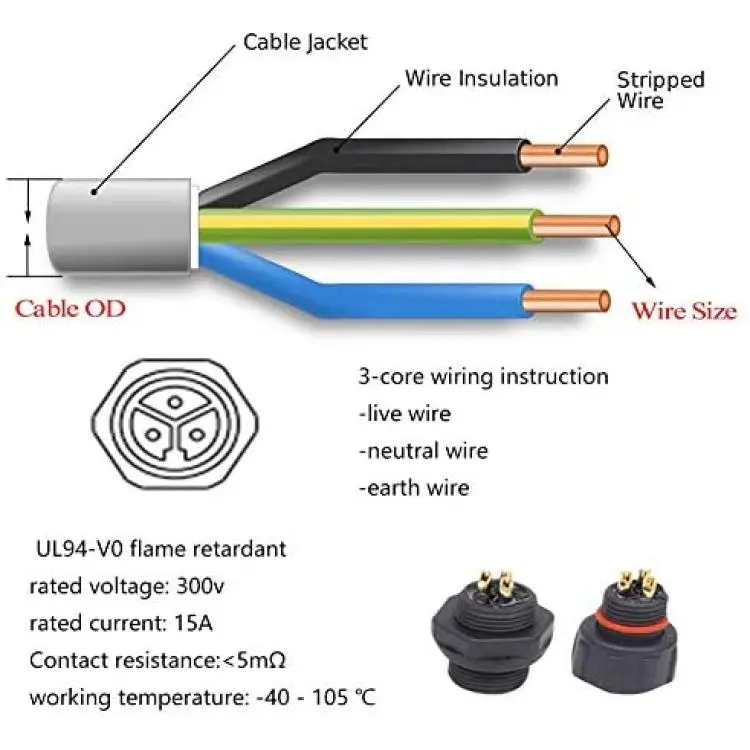

Pins: 3 Pin
Model: M20
Cable Gauge: 16AWG(less than 1.5mm²)
Diameter range: MAX ?10mm
Assembly wire: Solder, Screw lock
INGRESS PROTECTION: IP67
Connection Type: Threaded connection
Rated Voltage:300V
Rated Current:15A
Withstand Voltage(AC.V)1min: 1500V
Contact Resistance: less than 5m?
Insulation Resistance: more than 500M?
Durability: more than 3000 mating&unmating cycles
Shell, Insulated parts: PA66
Material of copper needles: Copper alloy(gold-plated?
Waterproof rubber ring: silicone
Working Temperature: -40°C-105°C
Working humidity:less than 90%RH
Flame Retardance: UL94-V0
APPLICATIONS: Fit Furrion RV Solar Port. Widely used in Photovoltaic / PV Solar Panel installation, Plant light, data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive, LED street light, outdoor display, electric bicycle, sensor and other industries.

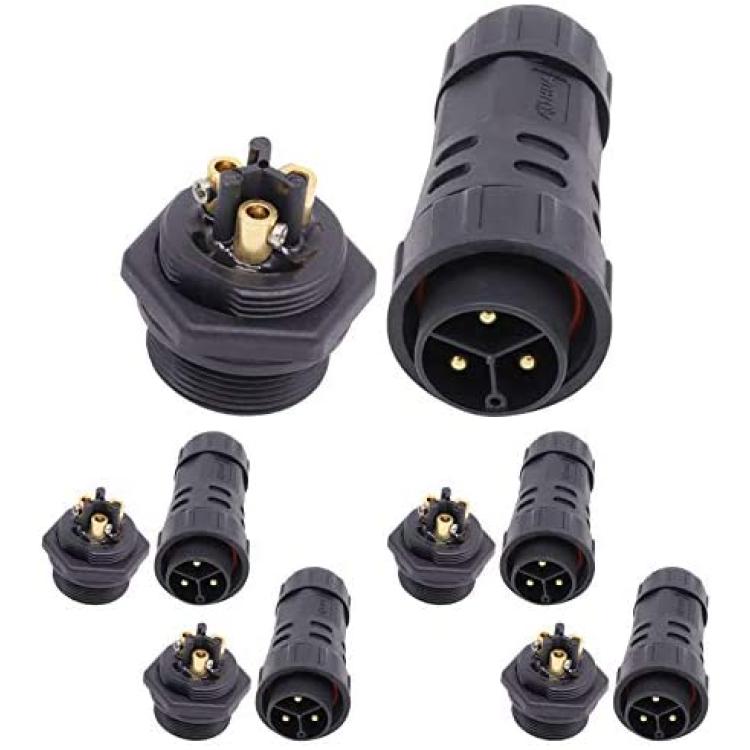

Package Included:
5x Male Connector
5x Female Connector
