Gx24 4-Pin Base LED Bulb, Lustaled 12W G24q PL-C Horizontal Recessed Light 26W CFL Lamp Equivalent for Kitchen Light Pendant Lamp Dining Room, Warm White 3000K, 4-Pack (Remove/Bypass The Ballast)

Gx24 4-Pin Base LED Bulb, Lustaled 12W G24q PL-C Horizontal Recessed Light 26W CFL Lamp Equivalent for Kitchen Light Pendant Lamp Dining Room, Warm White 3000K, 4-Pack (Remove/Bypass The Ballast)

Brand: Kalya LED Co., Ltd
Product Code: LD6100
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*[Technical Features]: 12W Gx24q 4-Pin base PLC Light Replacement Bulb, 26W CFL Equivalent, suit for GX24Q Base for GX24q-1, GX24q-2 or GX24q-3 bases; Please do not use the G24q LED bulbs with photocells, timers and dimmers.

*[Energy Saving]: This Gx24Q LED lamp is 12W and replaces CFLs up to 26W, saving up to 60% in lighting energy while delivering high lumens;

*[No Ballast Required]: Please be sure to remove or bypass the ballast from your existing CFL fixture before the installation of the bulb;

*[ECO-FRIENDLY]: Gx24q LED Bulb 360 degree beam angle instant on full brightness, good radiating, No radiation, environmental protection;

*[Mutiple Application]: Suitable for Recessed/Surface-mounted Downlights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches Lighting.

Description

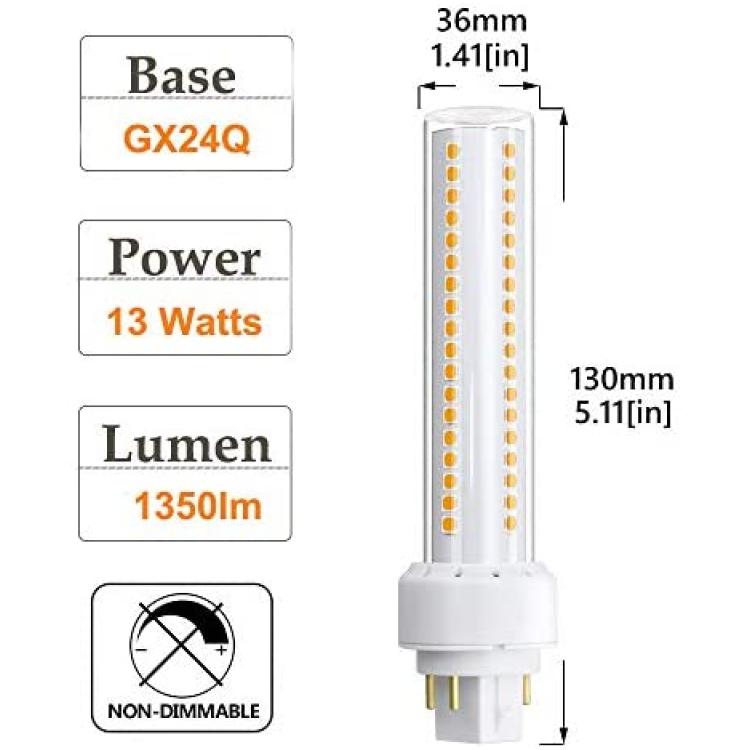

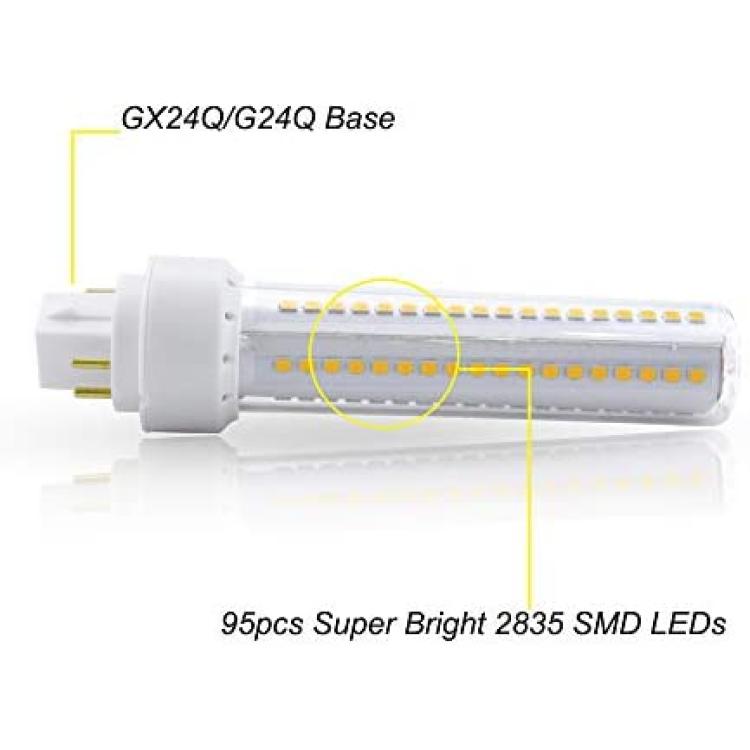

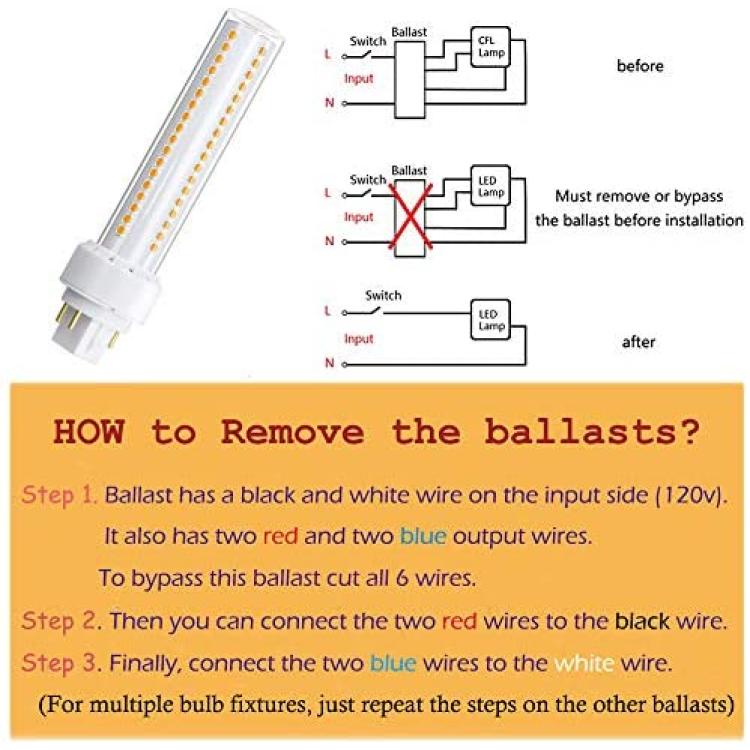

Specification: Dimension:D36mm*H130mm(1.41*5.11 Inches)Power: 12 WattsLEDs: 95pcs Super Bright 2835 SMD LEDsInput Voltage: AC 85-265VLumen: 1350lm (26W CFL replacement)Light Color: Warm White 3000KBeam angle: 360 degreeLamp Base: GX24Q/G24QCRI??85RaPackage:4 x Lustaled Gx24q LED CFL Replacement BulbThis GX24Q/G24Q LED light bulbs need to be removed or bypassed ballast. Otherwise, the ballast will cause flicker or damage the bulb, please remove or bypass ballast before installation.1. Ballast had a black and white wire on the input side (120V). It also had two red and two blue output wires. To bypass this ballast cut all 6 wires.2. You can then connect the two red wires to the black wire.3. Next connect the two blue wires to the white wire.4. For multiple bulb fixtures, just repeat the steps on the other ballasts.
